miniTOC

code : miniTOC

Online TOC control for pure water systems using highly efficient “direct surface” UV oxidation with online conductivity measurement.

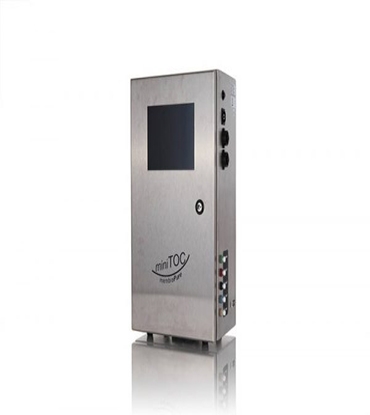

The miniTOC instrument uses the classic flow-through concept for online TOC control. The efficient UV oxidation of organic compounds by the “direct surface” principle in combination with conductivity detection guarantees the high precision of the measured values.

The automated functions of SST and calibration facilitate a high standard of safety and minimised operating costs in controlling the water.

The system is controlled on the basis of Windows 7 embedded software and through a TFT touchscreen. All data are encrypted and stored in a specific file for each day. The user has no opportunity to manipulate the raw data.

This is an easy to use system which brings quality control to your lab at an affordable level. The miniTOC is a valuable accessory for all ultrapure water systems. miniTOC can also be ordered with interval measuring, enabling up to 3 measuring points or loops to be controlled online with just one system. The interval can be configured by the user.

The minitoc can be upgraded with an offline module so grab sample can be meassured.




Calibration

Calibrating the miniTOC is easy and can be done by the user. Online operation is interrupted briefly for the calibration to be performed: The operator simply has to connect the inlet with the calibration standard solution and the diluting water sample.

The programmable sequence of the calibration steps will then be performed automatically. The statistical evaluation of the measurements and the corresponding calibration parameters are shown on the screen (plausibility test).

System Suitability Test (SST)

The verification of the TOC results according to the requirements of USP and Ph.Eur is realised by the periodic performance of system suitability tests.

The software in the miniTOC instrument enables the user to perform SST independently and ensures the automatic procedure and data evaluation of the test.
