Hei-TORQUE Precision 100

code :

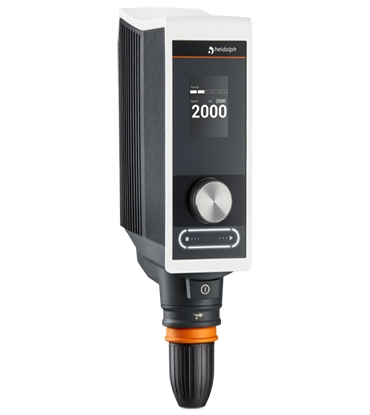

Hei-TORQUE Precision 100

P/N: 501-61020-00

High-end model

The professional stirrer for demanding tasks: several options for individual settings as ramps and interval operation. USB and RS 232 interfaces allow for documentation and reproducibility, e.g. with the free Hei-Control software (for up to four devices)

These stirrers are ideal for demanding tasks which have to be reproducible and documentable. The huge number of additional features and operation modes allow for perfect adjustment to your individual application

Accurate torque indication shows any viscosity changes
Constant speed even under changing loads

Digital 3.2” display for ease of operation:
• Allows for preprogrammed profiles
• Saves these profiles in memory
• Interval operation
• Watch rpm and torque graph life
• Timer / Countdown / Real time settings


All performance-related parameters can be set individually:
• Intensity of the start operation - from slow to fast
• The rotational speed can be limited to avoid splashing media
• The torque limit prevents damage to the impeller, e.g. when using fragile impellers in high viscous media


Newest motor generation provides maximum power at minimum noise level
Safe start and stop of operation via slide touch panel to avoid unintended stirring

Including free Hei-Control software for dependable automation of all processes. Control up to four devices simultaneously. Also compatible with magnetic stirrers MR Hei-Connect and MR Hei-End of the Hei-PLATE series

Range of Performance



100 Ncm

Performance graph of
Hei-TORQUE Precision 100















Hei-TORQUE Precision 100 - Product Advantages



The electronic stirrers feature individual setting of the start operation, which prevents spills and splashing media. The speed ramps up slowly until your set rpm has been reached



An optional shaft guard prevents accidents



Non-sparking motors for additional safety



Important for continuous operation: the motor will be switched off if a high thermal load situation occurs to increase safety in your lab and to prevent accidents



Safe start and stop of operation via slide touch panel to avoid accidental start-up



To protect your stirrer against corrosion and short-circuits, all models comply with the protection class IP 54



Setting a rotation speed limitation prevents splashing media



Unique Quick-Chuck for immediate and convenient “one-hand” impeller changing - without tools



Opening the safety ring blocks accidental operation



An audible signal confirms a tight fit of the impeller

 Hei-TORQUE Precision 100 - Technical Data

Number of speed gears 1
Rotation speed range 10 – 2,000 rpm
Rotation speed indicator digital
color 3.2"
Speed control electronic
Max. torque 100 Ncm
Torque indicator precise value
Overheat protection automatic cut-out
Viscosity max. 60,000 mPa s
Stirring cap. (H2O), max. 50 l
Thought-shaft design
Shaft diameter, max. 10.5 mm
Counter/ Timer
Analog / digital interface USB and RS 232
Power rating motor input 90 W
Protection class DIN EN 60529 IP 54
