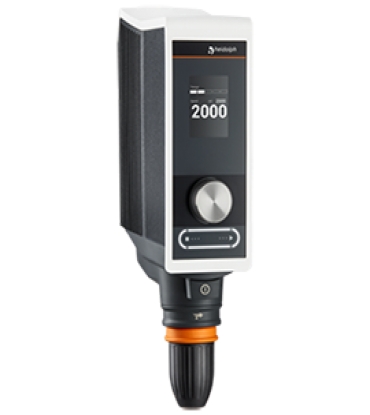

Hei-TORQUE Value 100

code :

Hei-TORQUE Value 100

P/N: 501-61010-00

Basic model

The reliable solution for all standard applications that do not need documentation

These stirrers are ideal for standard stirring tasks. They are designed to mix and disperse media that require non-reproducible results in high-viscosity applications

  • Indication of torque tendencies to monitor viscosity changes
  • Digital 2.4” display for ease of operation
  • Constant speed even under changing loads
  • Safe start and stop of operation via slide touch panel to avoid unintended stirring
  • Newest motor generation for maximum power at minimum noise level

Hei-TORQUE Value 100 - Product Advantages



The electronic stirrers feature individual setting of the start operation, which prevents spills and splashing media. The speed ramps up slowly until your set rpm has been reached



An optional shaft guard prevents accidents



Non-sparking motors for additional safety



Important for continuous operation: the motor will be switched off if a high thermal load situation occurs to increase safety in your lab and to prevent accidents



Safe start and stop of operation via slide touch panel to avoid accidental start-up



To protect your stirrer against corrosion and short-circuits, all models comply with the protection class IP 54



Setting a rotation speed limitation prevents splashing media



Unique Quick-Chuck for immediate and convenient “one-hand” impeller changing - without tools



Opening the safety ring blocks accidental operation



An

Hei-TORQUE Value 100 - Technical Data

Number of speed gears 1
Rotation speed range 10 - 2,000 rpm
Rotation speed indicator digital
monochrom 2.4"
Speed control electronic
Max. torque 100 Ncm
Torque indicator symbol
Overheat protection automatic cut-out
Viscosity max. 60,000 mPa s
Stirring cap. (H2O), max. 50 l
Thought-shaft design
Shaft diameter, max. 10.5 mm
Counter/ Timer -
Analog / digital interface -
Power rating motor input 90 W
Protection class DIN EN 60529 IP 54

Accessories Hei-TORQUE Value 100

Hei-TORQUE Series 2018
